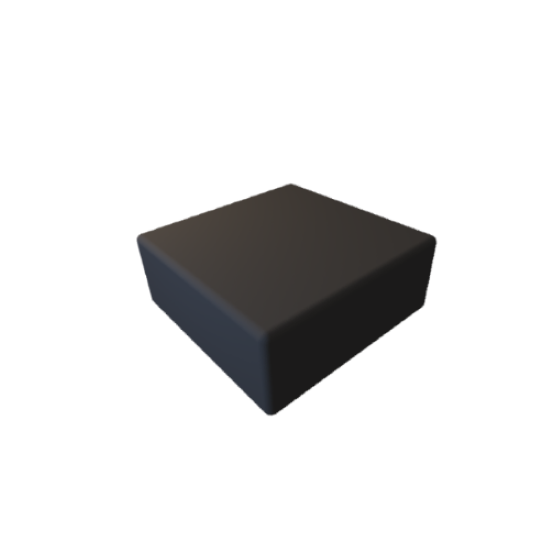

ZBWM030320C1 Series Products
| Part number | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L (mm)
|
W (mm)
|
T (mm)
|
Inductance(uH)
|
Tolerance
|
DCR(Ω)(Max.)
|
DCR (Ω)(Typ.)
|
Isat (Amp)(Typ.)
|
Irms (Amp)(Typ.)
|
Isat (Amp)(Max.)
|
Irms (Amp)(Max.)
|
SRF(MHz)
|
|
ZBWM030320C11R0MS
|
3 | 3 | 2 | 1 | 20% | 0.02 | 0.014 | 8 | 6.5 | 7.3 | 6 | |
|
ZBWM030320C11R5MS
|
3 | 3 | 2 | 1.5 | 20% | 0.025 | 0.019 | 7 | 6.3 | 6.5 | 5.8 | |
|
ZBWM030320C12R2MS
|
3 | 3 | 2 | 2.2 | 20% | 0.045 | 0.037 | 6 | 4.7 | 5.5 | 4.3 | |
