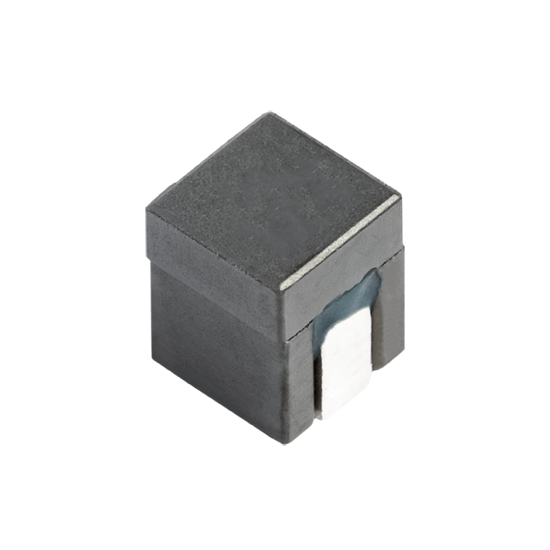

ZPWA-404040 Series Products
| Part number | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
L (mm)
|
W (mm)
|
T (mm)
|
L1@25°C (nH)
|
L2@Isat1 (nH)
|
Tolerance
|
DCR(mΩ, Max.)
|
Isat1@25°C (Amp)
|
Isat1@100°C (Amp)
|
Isat1@125°C (Amp)
|
Irms (Amp, Typ.)
|
|
ZPWA-404040-R022
|
4.0 | 4.0 | 4.0 | 22 | 14 | 10% | 0.3488 | 40 | 34 | 32 | 19.0 |
|
ZPWA-404040-R065
|
4.0 | 4.0 | 4.0 | 65 | 44 | 10% | 0.3488 | 26 | 22 | 20 | 19.0 |
|
ZPWA-404040-R10
|
4.0 | 4.0 | 4.0 | 100 | 72 | 10% | 0.3488 | 17 | 13 | 9.5 | 19.0 |
