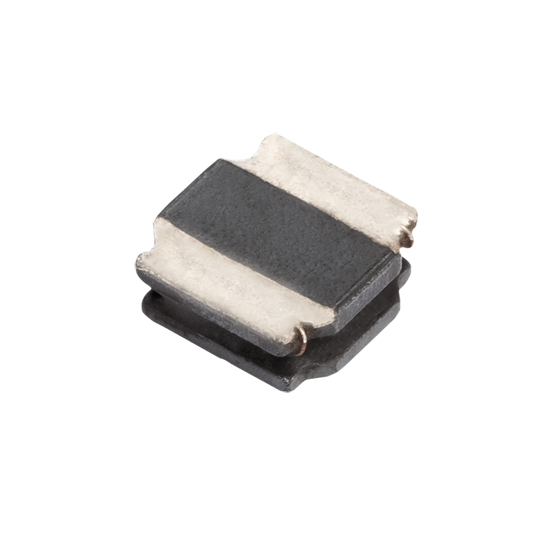

ZAD-5012MES Series Products
| Part number | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L (mm)
|
W (mm)
|
T (mm)
|
Inductance(uH)
|
Tolerance
|
DCR(Ω)(Max.)
|
DCR (Ω)(Typ.)
|
Isat (Amp)(Typ.)
|
Irms (Amp)(Typ.)
|
Isat (Amp)(Max.)
|
Irms (Amp)(Max.)
|
SRF(MHz)
|
|
ZAD-5012MES-1R0N
|
5 | 5 | 1.2 | 1 | 30 | 0.068 | 0.057 | 4.7 | 2.4 | 4.4 | 2 | 103 |
|
ZAD-5012MES-1R5N
|
5 | 5 | 1.2 | 1.5 | 30 | 0.086 | 0.072 | 3.8 | 2.2 | 3.7 | 1.9 | 68 |
|
ZAD-5012MES-2R2N
|
5 | 5 | 1.2 | 2.2 | 30 | 0.108 | 0.09 | 3.2 | 2 | 3.1 | 1.7 | 50 |
|
ZAD-5012MES-3R3N
|
5 | 5 | 1.2 | 3.3 | 30 | 0.151 | 0.126 | 2.6 | 1.7 | 2.4 | 1.4 | 34 |
|
ZAD-5012MES-4R7N
|
5 | 5 | 1.2 | 4.7 | 30 | 0.197 | 0.164 | 2.3 | 1.5 | 2.2 | 1.3 | 31 |
|
ZAD-5012MES-6R8M
|
5 | 5 | 1.2 | 6.8 | 20 | 0.294 | 0.245 | 1.9 | 1.2 | 1.7 | 1 | 22 |
|
ZAD-5012MES-100M
|
5 | 5 | 1.2 | 10 | 20 | 0.413 | 0.344 | 1.5 | 1 | 1.4 | 0.85 | 17 |
|
ZAD-5012MES-150M
|
5 | 5 | 1.2 | 15 | 20 | 0.523 | 0.436 | 1.3 | 0.92 | 1.2 | 0.8 | 13 |
|
ZAD-5012MES-220M
|
5 | 5 | 1.2 | 22 | 20 | 0.858 | 0.78 | 0.98 | 0.68 | 0.88 | 0.6 | 16 |
