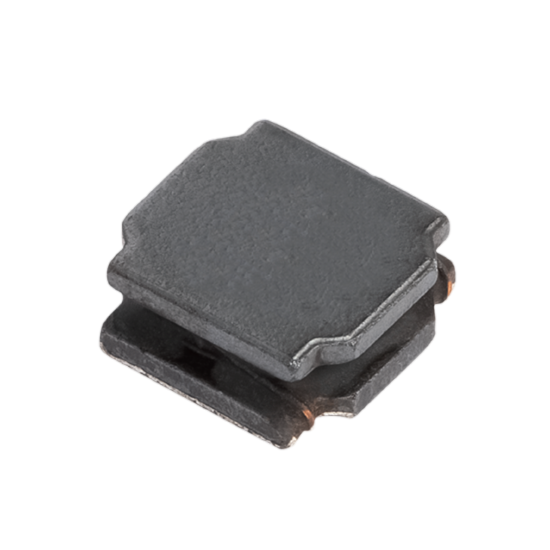

ZAD-5040MES Series Products
| Part number | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L (mm)
|
W (mm)
|
T (mm)
|
Inductance(uH)
|
Tolerance
|
DCR(Ω)(Max.)
|
DCR (Ω)(Typ.)
|
Isat (Amp)(Typ.)
|
Irms (Amp)(Typ.)
|
Isat (Amp)(Max.)
|
Irms (Amp)(Max.)
|
SRF(MHz)
|
|
ZAD-5040MES-1R0N
|
5 | 5 | 4 | 1 | 30 | 0.016 | 0.012 | 8.2 | 5.1 | 7.35 | 4.9 | 117 |
|
ZAD-5040MES-1R2N
|
5 | 5 | 4 | 1.2 | 30 | 0.021 | 0.016 | 7.1 | 4.3 | 6.5 | 4.15 | 110 |
|
ZAD-5040MES-1R5N
|
5 | 5 | 4 | 1.5 | 30 | 0.02 | 0.015 | 7.3 | 4.8 | 6.3 | 4.3 | 86 |
|
ZAD-5040MES-1R8M
|
5 | 5 | 4 | 1.8 | 20 | 0.021 | 0.016 | 6.4 | 4.3 | 5.5 | 4.15 | 55 |
|
ZAD-5040MES-2R2N
|
5 | 5 | 4 | 2.2 | 30 | 0.025 | 0.019 | 5.6 | 4.3 | 4.9 | 3.8 | 50 |
|
ZAD-5040MES-2R7N
|
5 | 5 | 4 | 2.7 | 30 | 0.029 | 0.022 | 5.1 | 4.1 | 4.3 | 3.6 | 37 |
|
ZAD-5040MES-3R0N
|
5 | 5 | 4 | 3 | 30 | 0.029 | 0.022 | 4.8 | 4.2 | 4.15 | 3.6 | 37 |
|
ZAD-5040MES-3R3N
|
5 | 5 | 4 | 3.3 | 30 | 0.031 | 0.024 | 4.6 | 3.9 | 3.95 | 3.4 | 32 |
|
ZAD-5040MES-3R9N
|
5 | 5 | 4 | 3.9 | 30 | 0.035 | 0.027 | 4.2 | 3.7 | 3.55 | 3.2 | 29 |
|
ZAD-5040MES-4R7N
|
5 | 5 | 4 | 4.7 | 30 | 0.039 | 0.03 | 3.9 | 3.3 | 3.5 | 3 | 28 |
|
ZAD-5040MES-5R6M
|
5 | 5 | 4 | 5.6 | 20 | 0.046 | 0.035 | 4.1 | 3.1 | 3 | 2.8 | 27 |
|
ZAD-5040MES-6R8M
|
5 | 5 | 4 | 6.8 | 20 | 0.056 | 0.043 | 3.5 | 2.8 | 2.9 | 2.5 | 21 |
|
ZAD-5040MES-8R2M
|
5 | 5 | 4 | 8.2 | 20 | 0.062 | 0.048 | 3 | 2.6 | 2.7 | 2.3 | 20 |
|
ZAD-5040MES-100M
|
5 | 5 | 4 | 10 | 20 | 0.083 | 0.064 | 2.9 | 2.4 | 2.35 | 2.1 | 18 |
|
ZAD-5040MES-150M
|
5 | 5 | 4 | 15 | 20 | 0.112 | 0.086 | 2.3 | 2.1 | 2 | 2 | 13 |
|
ZAD-5040MES-220M
|
5 | 5 | 4 | 22 | 20 | 0.168 | 0.129 | 1.9 | 1.6 | 1.6 | 1.5 | 11 |
|
ZAD-5040MES-330M
|
5 | 5 | 4 | 33 | 20 | 0.244 | 0.188 | 1.5 | 1.4 | 1.3 | 1.2 | 9 |
|
ZAD-5040MES-470M
|
5 | 5 | 4 | 47 | 20 | 0.354 | 0.272 | 1.3 | 1.1 | 1.1 | 1 | 7 |
|
ZAD-5040MES-680M
|
5 | 5 | 4 | 68 | 20 | 0.52 | 0.4 | 1.1 | 0.9 | 0.9 | 0.8 | 6 |
|
ZAD-5040MES-101M
|
5 | 5 | 4 | 100 | 20 | 0.728 | 0.56 | 0.9 | 0.8 | 0.75 | 0.7 | 5 |
