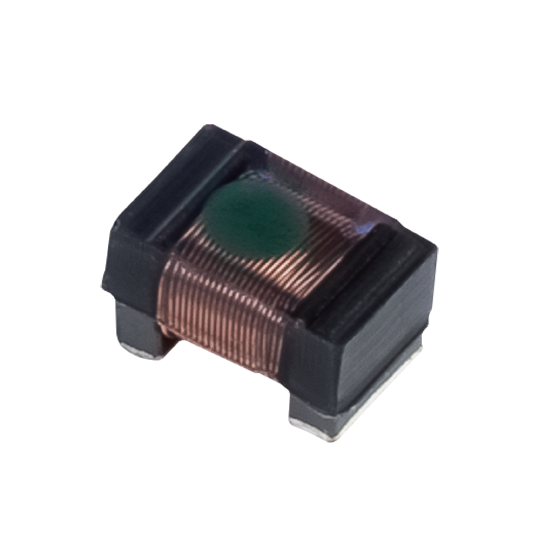

ZWP-0603 Series Products
| Part number | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L (mm)
|
W (mm)
|
T (mm)
|
Inductance(uH)
|
Tolerance
|
Q(Min)
|
SRF(MHz)
|
DCR(Ω)(Max.)
|
Isat (Amp)(Typ.)
|
Irms (Amp)(Typ.)
|
IDC (Amp)(Max.)
|
IDC (Amp)(Typ.)
|
Rated Current (Amp)(Max.)
|
|
ZWP-0603-R27K
|
1.8 | 1.2 | 1 | 0.27 | 10% | 13 | 900 | 0.34 | 0.82 | 0.95 | |||
|
ZWP-0603-R47K
|
1.8 | 1.2 | 1 | 0.47 | 10% | 13 | 900 | 0.34 | 0.8 | 0.92 | |||
|
ZWP-0603-R68M
|
1.8 | 1.2 | 1 | 0.68 | 20% | 13 | 650 | 0.35 | 0.8 | 0.92 | |||
|
ZWP-0603-R68K
|
1.8 | 1.2 | 1 | 0.68 | 10% | 13 | 650 | 0.35 | 0.8 | 0.92 | |||
|
ZWP-0603-R78M
|
1.8 | 1.2 | 1 | 0.78 | 20% | 16 | 410 | 0.36 | 0.8 | 0.92 | |||
|
ZWP-0603-R78K
|
1.8 | 1.2 | 1 | 0.78 | 10% | 16 | 410 | 0.36 | 0.8 | 0.92 | |||
|
ZWP-0603-1R0M
|
1.8 | 1.2 | 1 | 1 | 20% | 16 | 390 | 0.42 | 0.7 | 0.86 | |||
|
ZWP-0603-1R0K
|
1.8 | 1.2 | 1 | 1 | 10% | 16 | 390 | 0.42 | 0.7 | 0.86 | |||
|
ZWP-0603-1R5M
|
1.8 | 1.2 | 1 | 1.5 | 20% | 16 | 160 | 0.52 | 0.6 | 0.72 | |||
|
ZWP-0603-1R5K
|
1.8 | 1.2 | 1 | 1.5 | 10% | 16 | 160 | 0.52 | 0.6 | 0.72 | |||
|
ZWP-0603-1R8M
|
1.8 | 1.2 | 1 | 1.8 | 20% | 16 | 121 | 0.56 | 0.58 | 0.64 | |||
|
ZWP-0603-1R8K
|
1.8 | 1.2 | 1 | 1.8 | 10% | 16 | 121 | 0.56 | 0.58 | 0.64 | |||
|
ZWP-0603-2R2M
|
1.8 | 1.2 | 1 | 2.2 | 20% | 16 | 103 | 0.73 | 0.58 | 0.6 | |||
|
ZWP-0603-2R2K
|
1.8 | 1.2 | 1 | 2.2 | 10% | 16 | 103 | 0.73 | 0.58 | 0.6 | |||
|
ZWP-0603-2R7M
|
1.8 | 1.2 | 1 | 2.7 | 20% | 16 | 72 | 0.81 | 0.5 | 0.54 | |||
|
ZWP-0603-2R7K
|
1.8 | 1.2 | 1 | 2.7 | 10% | 16 | 72 | 0.81 | 0.5 | 0.54 | |||
|
ZWP-0603-3R3M
|
1.8 | 1.2 | 1 | 3.3 | 20% | 16 | 66 | 0.91 | 0.5 | 0.5 | |||
|
ZWP-0603-3R3K
|
1.8 | 1.2 | 1 | 3.3 | 10% | 16 | 66 | 0.91 | 0.5 | 0.5 | |||
|
ZWP-0603-3R9M
|
1.8 | 1.2 | 1 | 3.9 | 20% | 16 | 61 | 1.08 | 0.46 | 0.46 | |||
|
ZWP-0603-3R9K
|
1.8 | 1.2 | 1 | 3.9 | 10% | 16 | 61 | 1.08 | 0.46 | 0.46 | |||
|
ZWP-0603-4R7M
|
1.8 | 1.2 | 1 | 4.7 | 20% | 16 | 51 | 1.26 | 0.42 | 0.4 | |||
|
ZWP-0603-4R7K
|
1.8 | 1.2 | 1 | 4.7 | 10% | 16 | 51 | 1.26 | 0.42 | 0.4 | |||
|
ZWP-0603-5R6M
|
1.8 | 1.2 | 1 | 5.6 | 20% | 16 | 47 | 1.43 | 0.38 | 0.38 | |||
|
ZWP-0603-5R6K
|
1.8 | 1.2 | 1 | 5.6 | 10% | 16 | 47 | 1.43 | 0.38 | 0.38 | |||
|
ZWP-0603-6R8M
|
1.8 | 1.2 | 1 | 6.8 | 20% | 16 | 43 | 1.95 | 0.34 | 0.34 | |||
|
ZWP-0603-6R8K
|
1.8 | 1.2 | 1 | 6.8 | 10% | 16 | 43 | 1.95 | 0.34 | 0.34 | |||
|
ZWP-0603-8R2M
|
1.8 | 1.2 | 1 | 8.2 | 20% | 16 | 40 | 2.18 | 0.3 | 0.3 | |||
|
ZWP-0603-8R2K
|
1.8 | 1.2 | 1 | 8.2 | 10% | 16 | 40 | 2.18 | 0.3 | 0.3 | |||
|
ZWP-0603-100M
|
1.8 | 1.2 | 1 | 10 | 20% | 14 | 36 | 2.41 | 0.28 | 0.28 | |||
|
ZWP-0603-100K
|
1.8 | 1.2 | 1 | 10 | 10% | 14 | 36 | 2.41 | 0.28 | 0.28 | |||
|
ZWP-0603-120M
|
1.8 | 1.2 | 1 | 12 | 20% | 14 | 32 | 2.96 | 0.26 | 0.26 | |||
|
ZWP-0603-120K
|
1.8 | 1.2 | 1 | 12 | 10% | 14 | 32 | 2.96 | 0.26 | 0.26 | |||
|
ZWP-0603-150M
|
1.8 | 1.2 | 1 | 15 | 20% | 14 | 29 | 3.38 | 0.24 | 0.24 | |||
|
ZWP-0603-150K
|
1.8 | 1.2 | 1 | 15 | 10% | 14 | 29 | 3.38 | 0.24 | 0.24 | |||
|
ZWP-0603-180M
|
1.8 | 1.2 | 1 | 18 | 20% | 14 | 28 | 3.77 | 0.22 | 0.22 | |||
|
ZWP-0603-180K
|
1.8 | 1.2 | 1 | 18 | 10% | 14 | 28 | 3.77 | 0.22 | 0.22 | |||
|
ZWP-0603-220M
|
1.8 | 1.2 | 1 | 22 | 20% | 14 | 24 | 4.69 | 0.2 | 0.2 | |||
|
ZWP-0603-220K
|
1.8 | 1.2 | 1 | 22 | 10% | 14 | 24 | 4.69 | 0.2 | 0.2 | |||
|
ZWP-0603-270M
|
1.8 | 1.2 | 1 | 27 | 20% | 14 | 20 | 6.76 | 0.14 | 0.14 | |||
|
ZWP-0603-270K
|
1.8 | 1.2 | 1 | 27 | 10% | 14 | 20 | 6.76 | 0.14 | 0.14 | |||
|
ZWP-0603-330M
|
1.8 | 1.2 | 1 | 33 | 20% | 14 | 15 | 8.58 | 0.12 | 0.12 | |||
|
ZWP-0603-330K
|
1.8 | 1.2 | 1 | 33 | 10% | 14 | 15 | 8.58 | 0.12 | 0.12 | |||
|
ZWP-0603-470M
|
1.8 | 1.2 | 1 | 47 | 20% | 12 | 11 | 14.56 | 0.11 | 0.1 | |||
|
ZWP-0603-470K
|
1.8 | 1.2 | 1 | 47 | 10% | 12 | 11 | 14.56 | 0.11 | 0.1 | |||
