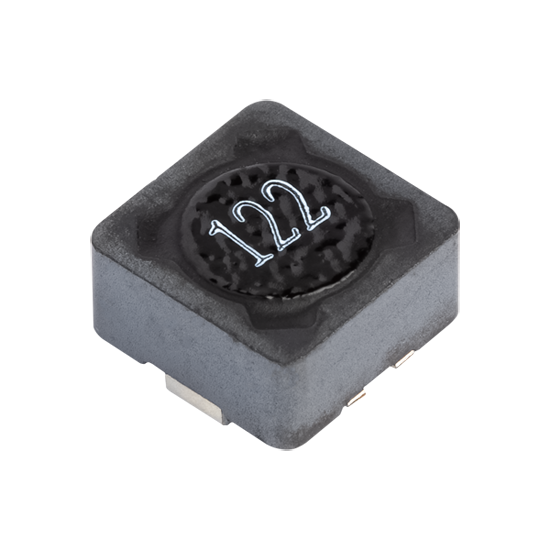

ZLP-7040S Series Products
| Part number | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L (mm)
|
W (mm)
|
T (mm)
|
Inductance(uH)
|
Tolerance(%)
|
DCR(Ω)(Max.)
|
DCR (Ω)(Typ.)
|
Isat (A)(Max.)
|
Isat (A)(Typ.)
|
Irms (A)(Max.)
|
Irms (A)(Typ.)
|
IDC (A)(Max.)
|
SRF(MHz)
|
|
ZLP-7040S-102M
|
7.3 | 7.3 | 4.5 | 1000 | 20% | 6 | 4.6 | 0.18 | |||||
|
ZLP-7040S-821M
|
7.3 | 7.3 | 4.5 | 820 | 20% | 5.2 | 3.88 | 0.2 | |||||
|
ZLP-7040S-681M
|
7.3 | 7.3 | 4.5 | 680 | 20% | 4.63 | 3.03 | 0.22 | |||||
|
ZLP-7040S-561M
|
7.3 | 7.3 | 4.5 | 560 | 20% | 3.62 | 2.65 | 0.23 | |||||
|
ZLP-7040S-471M
|
7.3 | 7.3 | 4.5 | 470 | 20% | 3.01 | 2.17 | 0.26 | |||||
|
ZLP-7040S-391M
|
7.3 | 7.3 | 4.5 | 390 | 20% | 2.85 | 1.71 | 0.29 | |||||
|
ZLP-7040S-271M
|
7.3 | 7.3 | 4.5 | 270 | 20% | 1.64 | 1.19 | 0.34 | |||||
|
ZLP-7040S-181M
|
7.3 | 7.3 | 4.5 | 180 | 20% | 0.98 | 0.76 | 0.42 | |||||
|
ZLP-7040S-151M
|
7.3 | 7.3 | 4.5 | 150 | 20% | 0.88 | 0.7 | 0.46 | |||||
|
ZLP-7040S-820M
|
7.3 | 7.3 | 4.5 | 82 | 20% | 0.43 | 0.36 | 0.61 | |||||
|
ZLP-7040S-560M
|
7.3 | 7.3 | 4.5 | 56 | 20% | 0.35 | 0.242 | 0.75 | |||||
|
ZLP-7040S-390M
|
7.3 | 7.3 | 4.5 | 39 | 20% | 0.23 | 0.163 | 0.91 | |||||
|
ZLP-7040S-270M
|
7.3 | 7.3 | 4.5 | 27 | 20% | 0.15 | 0.12 | 1.12 | |||||
|
ZLP-7040S-180M
|
7.3 | 7.3 | 4.5 | 18 | 20% | 0.091 | 0.0755 | 1.31 | |||||
|
ZLP-7040S-120M
|
7.3 | 7.3 | 4.5 | 12 | 20% | 0.058 | 0.043 | 1.71 | |||||
|
ZLP-7040S-6R8M
|
7.3 | 7.3 | 4.5 | 6.8 | 20% | 0.046 | 0.031 | 2.4 | |||||
|
ZLP-7040S-1R8N
|
7.3 | 7.3 | 4.5 | 1.8 | 30% | 0.018 | 0.014 | 5.5 | |||||
